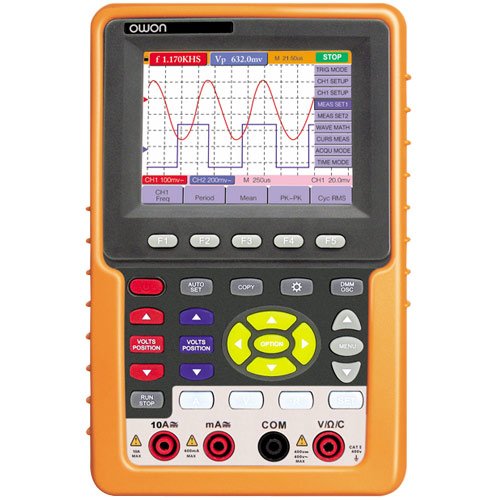

| Specifications |
| Bandwidth |
100MHz |
| Sample rate(Real time) |
500MS/s |
| Horizontal Scale(S/div) |
5ns/div~100s/div, step by 1~2~5 |
| Rise time (at input, typical) |
≤3.5ns |
| Channels |
Dual |
| Display |
3.7 inch color display with TFT panel (640×480 pixels) |
| Input impedance |
1MΩ±2%in parallel with 15pF±5pF |
| Probe attenuation factor |
1X，10X，100X，1000X |
| Max. input voltage |
400V (PK-PK) DC + AC PK-PK, 1MΩ input impedance, Probe attenuation 10:1 |
| Record length |
Max.6000 points on each channel |
| Interpolation |
(sin x)/x |
| Input coupling |
DC, AC, GND |
| Acquisition modes |
Sample, Peak Detect and Average |
| Vertical resolution (A/D) |
8 bit (2 channels simultaneously ) |
| Vertical sensitivity |
5mV/div～5V/div(at input) |
| DC gain accuracy |
±3% |
| DC accuracy (Average) |
Average>16:±(5% reading+0.05div) for ΔV |
| Trigger type |
Edge, Video, Alternate |
| Trigger mode |
Auto, Normal, Single |
| Trigger level |
±6 divisions from screen center |
| Waveform math |
＋, －, ×, ÷, FFT |
| Waveform storage |
4 waveforms |
| Communication interface |
USB |
| Cymometer |
Available |
| Power supply |
100V-240V AC, 50/60Hz |
| Multimeter Specification |
| Full scale reading |
0V-1.5V |
| Input Impedance |
<50(±30) beeping |
| Capacitance |
51.2nF-100uF:±(3%±3 digit) |
| Voltage |
VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V,
VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value) |
| Current |
DCA:40mA, 400mA:±(1.5%±1 digit) 10A:±(3%±3digit)
DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3%±3digit) |
| Impedance |
400Ω:±(1%±3digit), 40Ω |
|
